Designed for architects. Built for installers
Realisation of architectural expression
Rails & Fixings
Add NVELOPE rail/s and fixings
The relationship between the façade material and the cladding support system in the context of expansion must be considered.

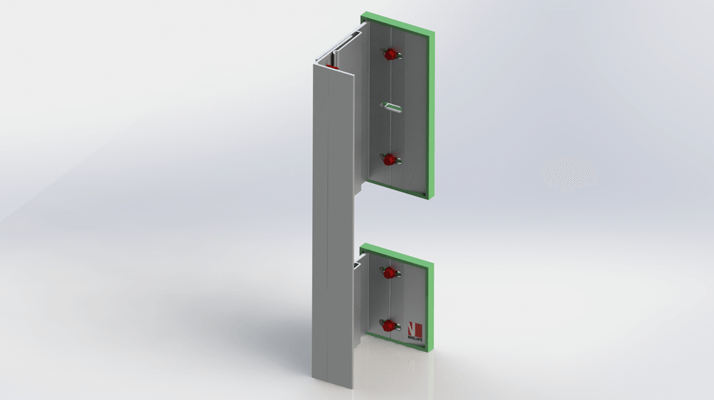

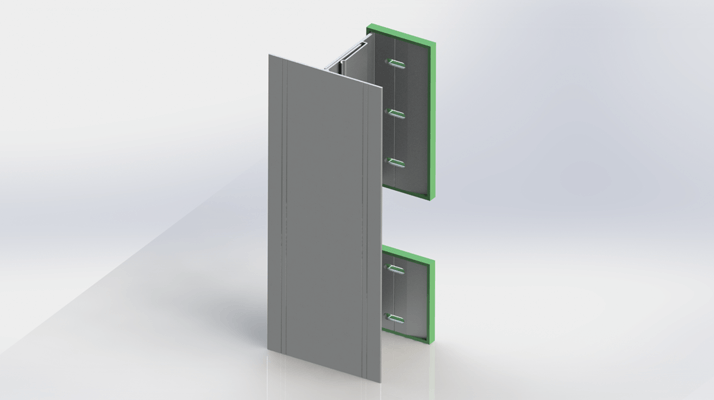

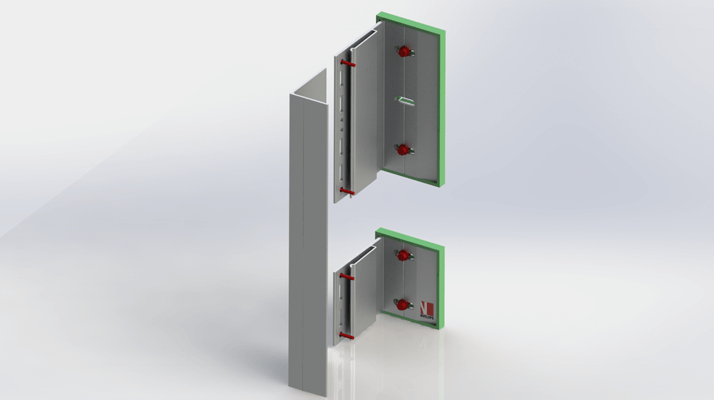

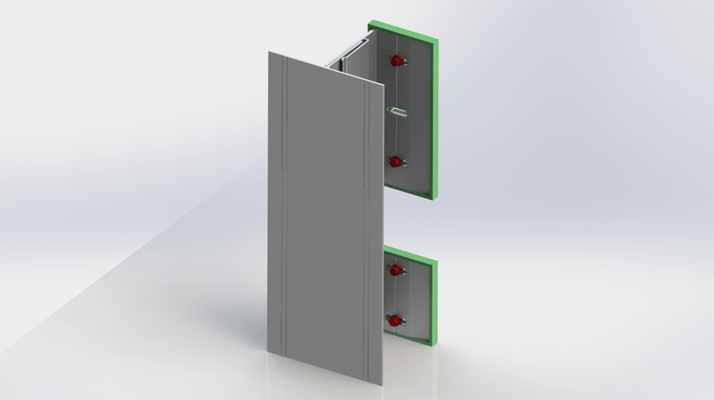

The rails are clipped into the brackets and, after adjustment for line and level, are fixed to them using self-drilling stainless steel screws.
We hold extensive stocks of our standard cladding support systems rails in all configurations, available for immediate delivery. Project specific, cut profile lengths and bespoke systems solutions are also available. We turn things around super-fast.
NVELOPE Rails |
||

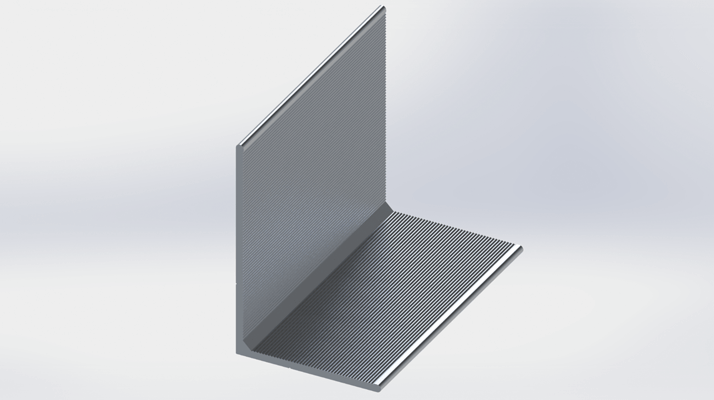

L60-40-2.2-3000 |
|
60 x 40 x 2.2mm L 3000 = 3 metre length (also comes in 6 metre and 4.85 metre) |

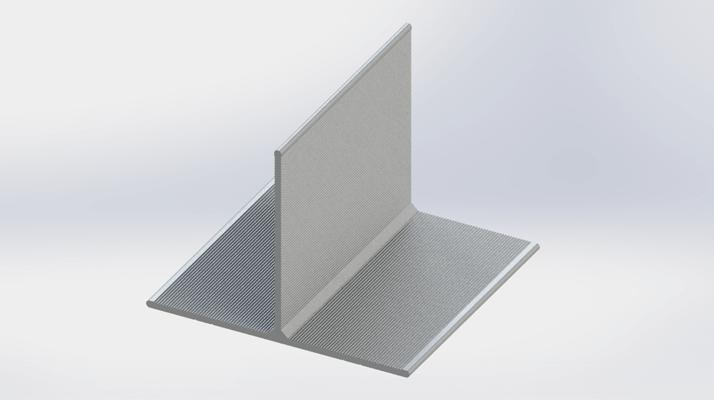

T60-80-2.2-3000 |
|
60 x 80 x 2.2mm T 3000 = 3 metre length (also comes in 6 metre) |
T60-100-2.2-3000 |
|
60 x 100 x 2.2mm T 3000 = 3 metre length (also comes in 6 metre and 4.85 metre) |
T40-100-2.2-3000 |
|
40 x 100 x 2.2mm T 3000 = 3 metre length (also comes in 6 metre) |
T60-120-2.2-3000 |
|
60 x 120 x 2.2mm T 3000 = 3 metre length (also comes in 6 metre and 4.85 metre) |
T60-140-2.2-3000 |
|
60 x 140 x 2.2mm T 3000 = 3 metre length (also comes in 6 metre) |
HBL60-40-2.5 |
|
60 x 40 x 2.5mm L 3000 = 3 metre length (also comes in 6 metre and 4.85 metre) |
02/CR-6000 |
|
6000 = 6m length |
Omega and Zed Profiles |
|
|
OM25-120-2.4-3000 |
|
25mm Omega 3000 = 3 metre length (also comes in 6 metre) |
OM40-140-2.4-3000 |
|
40mm Omega 3000 = 3 metre length (also comes in 6 metre) |
Z25-45-30-2.4-3000 |
|
25mm Zed 3000 = 3 metre length (also comes in 6 metre) |
Z40-55-30-2.4-3000 |
|
40mm Zed 3000 = 3 metre length (also comes in 6 metre) |
Fixings |
||
Fixing |
Reference |
Detail |
SR2 4.2 x 16 |
4.2-16 |
Rail to bracket |
SX3 6.0 x 29 |
04/SX3/9-S16-6.0X29 |
Metsec steel frame with no cement board or omega |
SX3 6.0 x 48 |
04/SX3/28-S16-6.0X48 |
Metsec steel frame with up to 18mm cement board |
MBRK 10 x 60 |
04/MBRK-S4-H18-10-60 |
To block / concrete dependent on block strength thickness |
MBRK 10 x 80 |
04/MBRK-S4-H18-10-80 |
To block / concrete dependent on block strength thickness |
View our Case Studies
View our BBA Certification
Go to Project Builder
All products are made in the UK
